PA-SYSTEM:
6 Meyer Sound MTS - 4 Self-powered
Full-Range Main Loudspeakers Delay PA: PA and Delay System is aligned with use
of Meyer Sound SIMM ™ Spare PA/Side fills/Monitor: Mixers: 1 Midas XL464 40 mono - 8 stereo
input. All moving faders Equalizers FOH: FOH rack: Monitor system: Equalizers Monitor: Effects processors monitors/Venicerack: Microphones: D.I. boxes/bokser: Wireless microphones:
6 Meyer Sound UPA - 1 Compact Wide Coverage Loudspeakers
5 Crest Audio 4001 Professional amplifiers
2 Meyer Sound 700-HP Ultrahigh-power subwoofer
4 Meyer Sound UPA - 1 Compact Wide Coverage Loudspeakers
2 Crest Audio MA 5850 Professional amplifiers
1 BSS 803 Delay
2 Meyer Sound UPA – 1
1 Crest Audio MA 5850 Professional amplifiers
1 M – 1 Controller for UPA – 1
2 Meyer Sound CQ - 1P Self-powered speakers
1 Midas Venice 320
1 Klark Teknik DN 370 (L/R)
2 Klark Teknik DN 360 (Fills & Subs)
1 Lexicon PCM – 91
1 Lexicon PCM – 70
1 Yamaha SPX 2000
1 Yamaha SPX 900
1 TC 2290 Delay
1 Aphex aural exciter Type B
1 Klark Teknik DN 504, 4 channel compressor
4 DBX 166 XL compressors
3 DBX 160 X compressor
1 Drawmer 202 2 channel gate
1 BSS DPR 504, 4 channel gate
1 Sabine ADF 4000 Power – Q
1 Denon 2500F, CD player
1 Soundcraft SM 20 Monitor Mixer 20 Aux
6 Meyer Sound UM - 1P Self-powered Monitors
4 Meyer Sound UM - 100P Self-powered Monitors
5 Tannoy 3859 15"
2 Crest Audio 4001 Professional amplifiers
9 Klark Teknik DN 360
1 TC M3000
1 Yamaha SPX 2000
2 DBX 166A compressor
Available inhouse equipment:
1 Behringer HA4700 4 ch headset amp
1 Yamaha Rev7 digital effectprocessor
1 Tascam DA-30mkII DAT machine
1 Tascam MD-801R mkII MiniDisc
1 Denon DN-720R, Cassette deck
4 Schoeps Colette CMC6Ug - MK4g
2 Neumann KMS 105
6 SHURE SM 57
12 SHURE SM 58
6 SHURE Beta 58 A
6 SHURE Beta 87
1 SHURE Beta 91
4 SHURE SM 98
2 AKG C 414 B-ULS
2 AKG C 747
6 AKG C 535 EB
1 AKG D 12 E
1 AKG D 112
3 AKG C 452 EB
8 AKG C 451 EB
5 AKG CK 1
4 AKG CK 3
2 AKG CK 5 1
C-ducer CX Stereo
3 Sennheiser MD 421 U
1 Audio Technica ATM 25
1 ElectroVoice RE20
2 BeyerDynamic M88
4 Alphaton SM - 50 D.I. boxes passive
4 Alphaton SM - 60 D.I. boxes active
6 BSS AR 133
4 Klark Teknik DN 100
4 Shure UR1 bodypack transmitters
4 DPA 4066 beige omnidirectional headband microphone
4 Shure UR2 handheld
transmitters with Beta 58A supercardioid microphone.
2 Shure UR4D dual channel receivers
1 Shure UA845 antenna distribution
2 Shure UA870WB active directional antennas
Mic-stands:
34 Koenig & Meyer/AKG regular w/boom
13 Koenig & Meyer/AKG low level style
Wireless microphone transmission systems:
4 Sennheiser handheld mic SKM 4031
4 Sennheiser MKE 2-2 R 3 Red dot mic.
4 Sennheiser pocket transmitters SK 2012
4 Sennheiser high frequency diversity receivers EM 2003
Frequency range:
811,7 - 812,2 - 813,8 - 814,4 MHz
Inter-com:
1 Clear-com SB - 440 4 channel
1 Clear-com RM - 120 A 2 channel Remote station
5 Clear-com RS - 100 A Belt-pack
3 Clear-com RS – 501 Belt-pack
12 Beyer Dynamic DT - 108 Head-sets
3 Beyer Dynamic DT - 109 Head-sets
1 Clear-com CC - 75 B Head-set
1 Clear-com Wireless Master station
1 Clear-com Transmitter WBS-6A
3 Clear-com Receiver WBS-R
3 Clear-com Belt pack WTR-2
LYSAVDELINGEN / LIGHTING DEPARTMENT

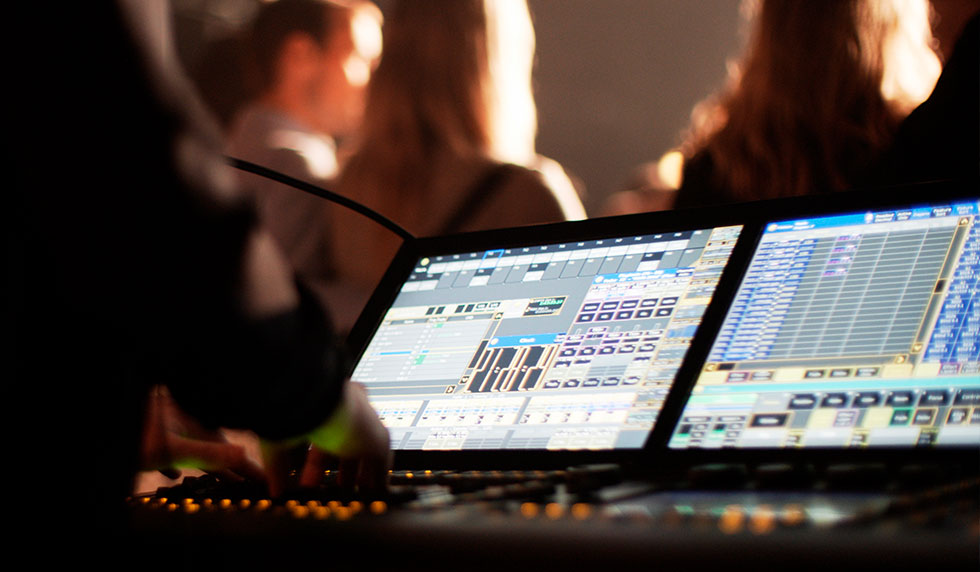

MA Lighting GrandMA Full Size (www.malighting.de)
2048 channel console
8 bit or 16 bit dimmers and attributes
Hardware:
· Pentium processor with 266 MHz processor speed and 64 Mbytes RAM
· 12 Mbytes non-volatile Flash-Disk for Operating System,
System software and installation data
· Built-in 2 GByte hard disk
· Integrated 3.5" floppy-disk for easy software upgrading and external storage of show data
· Hidden reset button on rear housing
· Built-in UPS (un interrupt able power supply) to withstand main power failures up to 10 minutes
· Professional protection against electromagnetic interference in compliance with all relevant European EMC regulations
Executor Faders and Buttons:
· Executors organized in pages with optional multi-page
operation
· Working mode of faders and buttons can be freely assigned
· Up to 3 executors can be grouped together to control one cue-list
· A block of special function buttons can be applied to any executor
Fader working modes:
· Brightness master in HTP or LTP mode
· Manual X-fade
· Speed, fade time, rate for chaser and sequences
Button working modes:
· On/OFF, GO+, GO–, pause, flash up and Flash down
· Fast GO and GO– (<<< and >>>) without fades
· Temporary flash playback even for LTP channels
GrandMA remote (PDA)
WiFi based riggers remote with full access to all functions on the gMA
A variable range of gels/filters: Et variert utvalg av farvefilter:
ROSCO, LEE, CINEMOID, CHROMOID, CINELUX, CINEGEL, CHROMGEL
Lanterns/instruments/Lyskastere:
20 Niethammer HPZ 215 2 kW FOH
34 Niethammer HPZ 115 1,2 kW FOH/Stage/scene
10 Niethammer HPZ 115 D 1,2kW Stage/Scene
10 Rank
10 Rank Strand Harmony 22/40 1 kW Stage/scene
16 Rank Strand Harmony F 1 kW Stage/scene
40 Rank Strand Punchlite par blazers 1 kW Stage/scene
10 Rank Strand Par blazers 4 1 kW Stage/scene
5 Rank Strand T/84 Profile 1 kW Stage/scene
5 Rank Strand T/64 Profile 1 kW Stage/scene
6 Rank Strand Cadenza F 2 kW Stage/scene
9 Rank Strand Alto F 2 kW Stage/scene
4 Rank
4 Rank
8 Rank
2 Pani HMI Follow Spots 1,2 kW Auditorium
6 Mac 500 E moving head 0,575 kW Stage/scene
6 Mac 600 E moving head 0,575 kW Stage/scene
12 Mac 250 Wash moving head 0,250 kW Stage/scene
217 Lanterns/instruments/ lyskastere
Total: 245,1 kW
SCENE/STAGE
Nivåforskjell mellom scene/ sal Level between stage/aud. 0,3 m
Høyde til grid, scenefront Grid height downstage 10,0 m
Høyde til grid, midt scene Grid height centerstage 7,5 m
Høyde til grid, bakre scene Grid height upstage 6,0 m
Bredde, buet front Width, curved front 23,7 m
Bredde, bakre scene Width, upstage 15,0 m
Dybde, midt på scene Depth, U.C.-D.C. 11,8 m
Forteppe, horisontalt, motorisert Front curtain, hor., motor. 23,7 m
B-teppe-trekk, motorisert B-curtain, on track, sideways 23,7 m
C-teppe-trekk, manuelt C-curtain, on track, sideways 15,0 m
Svart ull bakteppe , to deler Pair of Curtains, Bl. Serge 9,7 x 5,7 m
Svart velur bein , to stk. Pair of wings, Black Velour 4,5 x 7,2 m
Svart velur bein, to stk. Pair of wings, Black Velour 3,5 x 5,7 m
Svart ull bein, to stk. Pair of wings, Black Serge 3,5 x 5,7 m
Svart velur kappe, to deler Border, Black Velour, 7,5 x 1,5 m
Svart velur kappe Border, Black Velour 13,0 x 2,0 m
Svart ull kappe Border, Black Serge 13,0 x 1,4 m
Svart ull kappe Border, Black Serge 9,7 x 1,2 m
Horisont , off-white Cyclorama, off-white 13 x 5,5 m
Haitann-nett Shark-tooth net 12 x 4 m
Scenelodd 19 kg. Weights 19 kg, 20 pc.
Film lerret Film screen 11 x 5 m
Tørris maskin Pea Souper Pea Souper Dry Ice Machine 2 pc.
Røykmaskin JEM ZR-41D Smoke Machine JEM ZR-41D 1 pc.
Podieelementer Risers 2 x 1 m 20 pc.
2 x 1 m (10,20,40,60,80) (10,20,40,60,80)
Kortrapper (20,40,60) Choral risers (20,40,60) 8 pc.
Notestativ Music stands 70 pc.
Notestativ lamper Lamps for music stands 70 pc.
STRØM/POWER SUPPLY
3-fase: 1 stk 125A 230 V 3-phase : 1 pc 125 Amps 230 V
1 stk 80 A 230 V 1 pc 80 Amps 230 V
1 stk 63 A 230 V 1 pc 63 Amps 230 V
2 stk 32 A 230 V 2 pc 32 Amps 230 V
1-fase: 5 stk 16 A 230 V 1-phase: 5 pc 16 Amps 230 V
3-fase + 0: 3-phase + neutral:
1 stk 25 A 400 V 1 pc 125 Amps 400 V
1 stk 63 A 400 V 1 pc 63 Amps 400 V
1 stk 32 A 400 V 1 pc 32 Amps 400 V
ANTALL SITTEPLASSER/SEATING CAPACITY
1068 seter som i spesielle tilfeller kan utvides til 1107 seter pluss
5 rullestol plasser
5 ledsagerstoler
1068 seats, In particular cases total capacity is expandable to 1107 seats plus
5 wheelchair positions
5 companion seats
Adresse:
Stavanger Konserthus
Bjergsted
4007 Stavanger
